1900Mhz 20mA MTK6261 GPRS GSM 140mAh Car GPS Tracker

Product Categories
SHENZHEN YITUOWULIAN SYSTEM CO.,LTD
Contact Now

1900Mhz 20mA MTK6261 GPRS GSM 140mAh Car GPS Tracker

  • 1
  • 2

Brand Name : caxtrack

Model Number : CA-V4

Certification : CE/ROHS/FCC/SGS ISO9000

Place of Origin : China

MOQ : 10 pcs

Price : negotiation

Payment Terms : T/T or western Union or paypal

Supply Ability : 100,000pcs per month

Delivery Time : 1-10 working days after received your payment

Packaging Details : Packed in carton firstly

Product Name : Motorcycle GPS Tracker

Network : 2G GSM Network

Band : 850/900/1800/1900MHz

Working currency : 20mA / 12V

Work Voltage : 9-80V

Dim. : 90*33*15mm

Weight : 0.067kg ( Battery and Power cord Included )

GPS sensitivity : -159dBm

GPRS chip : MTK6261

Rechargeable Lithium-Polymer Battery : 140mAh

torage Temp. : -40°C to +85°C

Operation Temp : -20°C to +55°C

Function2 : Motorcycle Anti-Theft

Function 1 : support ACC ignition checking

Function 3 : support Relay for cutting off the power/fuel

Contact Now



GSM GPRS Car GPS Tracking Device , E-bike Waterproof Motorcycle Gps Tracker



This Mini Size GPS Tracking Units model CA-V4 is our newest model, the size is like a lighter, very easy to hidden when install, and 9-100V widly working voltage makes it can widly used in motorbike, Electric bike, car, trucks etc. Meanwhile, The price is also very competitive, this small unit is very suitalbe for largely quantity marketing. If you are a wholesale or GPS Tracker distributor, this is very suitable model for you.





Performance Parameters:



Content

Specs.
Name Motorcycle GPS Tracker

Network

2G GSM GPRS

Band

850/900/1800/1900Mhz

GPS chip

UBLOX

GPS sensitivity

-159dBm

GPS accuracy

10m

Time To First Fix

Cold status  38s

Warm status  15s

 Hot status  1s

voltage input

9－100V  input



Battery

Build-in 3.7V 140mAh Li-ion battery

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +55°C

Humidity

5%--95% non-condensing
Size  7.6cm x 2.6cm x 1.3cm
Weight  0.067kg ( Battery  and Power cord  Included )
Waterproof  IP67


APPLICATONS



  • Motorcycle Tracking
  • E-Bikes Tracking
  • Car tracking
Function



1 Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times, and get the working status. You can choose the positioning platform by yourself.
2.Cutting off power and alarm.
3 Remote controlling oil and circuit: you can control the oil and circuit via the unit by SMS in anywhere and anytime.
4 ACC checking;
5. Overspeed Alert: Send SMS to the unit to start the movement alert function. When the vehicle is overspeed, the unit will send the overspeed alert to all authorized numbers.
6. Movement Alert: Send SMS to the unit to start the movement alert function. When the vehicle is moving, the unit will send the movement alert to all authorized numbers
7 Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to all authorized numbers when it breaches the district.
8. Auto Track: You can set up auto track by SMS or on-line positioning platform.
9.Mileage statistics;
10. Three ways tracking: SMS inquiry position, Phone app, PC tracking.
11. Modify the IP and Port of Communication Protocol for different on-line positioning platform.



Gurantee:



All of our product offer 1 year wanrranty.



Main components: (V1.0)
GPS functions:
protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm,
GPS module: Ublox 6) platform /APP supported

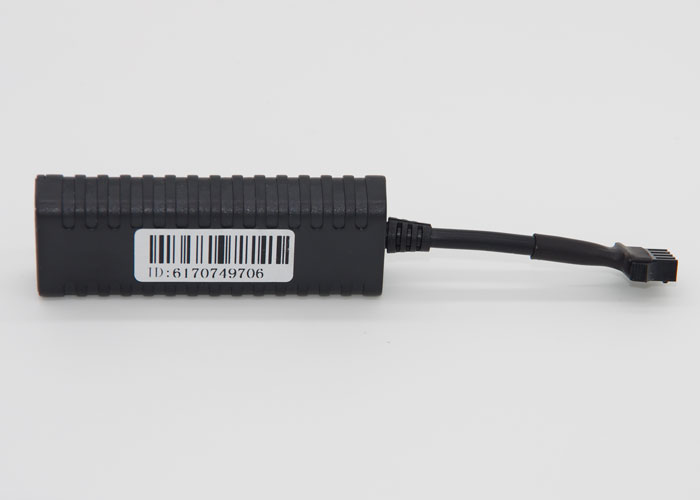

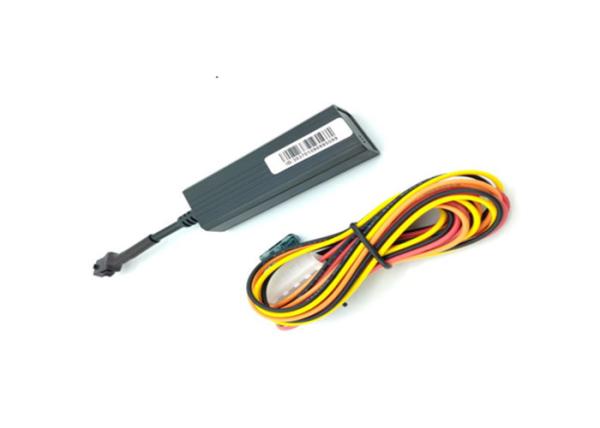

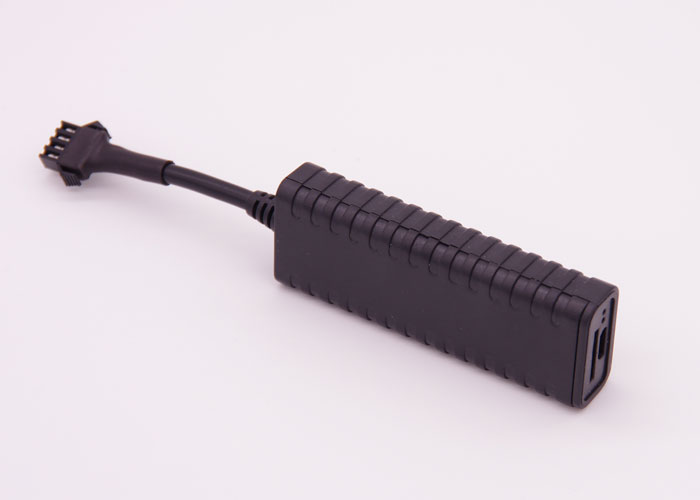

Detail Pictures:



1900Mhz 20mA MTK6261 GPRS GSM 140mAh Car GPS Tracker

1900Mhz 20mA MTK6261 GPRS GSM 140mAh Car GPS Tracker





Contactor Details:



whatsapp: +86-13723713679

Skype:13723713679
Wechat:+86-13723713679
website:www.gpstrackerlocator.com
