TK003 Module Motorcycle Gps Tracking 800/850/900/1800/2100/2600MHz Bands Build In GPS Antenna

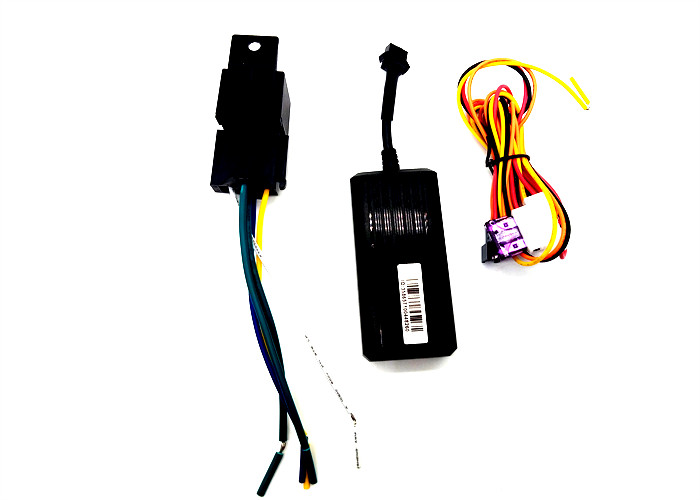

Product Accessories
1.1 Power cable
1.2 User Guide
1.3 Microphone (optional)
1.4 SOS button (optional)
1.5 Relay (optional)
Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
TK003 Module Motorcycle Gps Tracking 800/850/900/1800/2100/2600MHz Bands Build In GPS Antenna
Product Features
| gsm850/900/1800/1900mhz |
| wcdma850/900/1900/2100 Mhz |
| voltage range: 9-80VDC; |
| GPS / LBS real-time positioning |
| support the computer to track the car, |
| mobile search |
| vehicles and wechat search vehicles |
| SMS text query location information |
| ACC ignition signal detected |
| Built-in vibration sensor |
| Able to set a specific number for SOS alarm and burglar alarm |
Technical parameter:
| GSM: | 850/900/1800/1900 Quad band |
| GPRS: | Class12, TCP/IP |
| Working Voltage | 9-100V DC |
| Working current: | ≈22mA (12vDC) |
| Working current: | ≈12mA (24vDC) |
| GPS locating time: | Cold start≈38s(Open sky)
Warm start≈32s Hot start≈2s(Open sky) |
| GPS Precision: | 10m(2D RM) |
| Working temperature: | *-20℃～+70℃ |
| Working humidity: | 20%～80%RH |
| Measurement: | 90(L)×40(W)×15(H)mm |
TK003 Module Motorcycle Gps Tracking 800/850/900/1800/2100/2600MHz Bands Build In GPS Antenna
Main components:
GPS functions:
protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm,
GPS module: Ublox 6)platform /APP supported
Device status indicators
1 Connect DC 9-100V power supply and the red LED will light continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
TK003 Module Motorcycle Gps Tracking 800/850/900/1800/2100/2600MHz Bands Build In GPS Antenna
Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
Under Front windshield；
In the front instrument panel；
Under back windshield；
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover.
Note:The metal cover will lessen the receiving of GPS signals.
FAQ:
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
