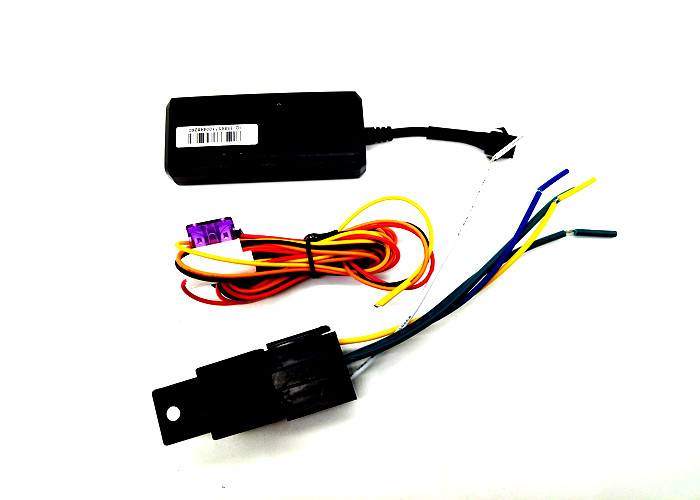

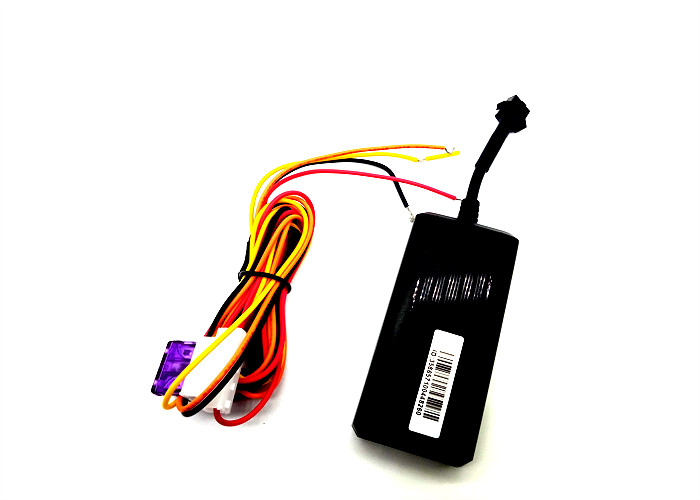

4G GPS Tracking Device For Trucks Asset Security TK003 Module
Product Features:
1: 2G:GSM 850MHz,900MHz,1800MHz,1900MHz
3G:WCDMA 2100/1900/900/850MHz
4G:FDD-LTE 800/850/900/1800/2100/2600MHz
2:Europe / Middle East / Africa / South
Korea / Thailand EC25-E:
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8
3:North America EC25-A
EC25-V:
LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
LTE FDD: B4/B13
4:Australia/New Zealand/Taiwan/Brazil
EC25-AU:
LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
5:Japan
EC25-J
LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19
Produce Description
| GSM | GPRS |
| Geo-sensor | Input power |
| ACC | Ignition checking |
| Built-in battery | Cutt off power/fuel |
| Real time tracking | Over speed alarm |
| Relay supported | Platform /APP supported |
4G GPS Tracking Device For Trucks Asset Security TK003 Module
Functions:
ACC Security Settings
Need to correctly connect the ACC wire
1 ACC under open status (car key turn switch on), if automatically security, turn on
ACC can exit security. If security manually through SMS or platform, turn on ACC can not
exit security automatically.
2 ACC under close status (car key switch off), after 3 minutes it will enter security
automatically.
3 SMS settings ACC auto security on (default)
ACCLOCK,123456,1
Re: OK
4 SMS settings ACC auto security off
ACCLOCK,123456,0
Re: OK
5 SMS settings auto security time (default 3 minutes)
ACCLT,123456,3
(3 means after 3 minutes auto security)
Vibration Alarm Settings
1 Open vibration alarm SMS: 125#
Reply message: OK
2 Close vibration alarm SMS (default): 126#
Reply message: OK
3 Open vibration alarm phone call: 122#
Reply message: OK
4 Close vibration alarm phone call (default): 121#
Reply message: OK
5 Setting the duration of vibration alarm, 1-15 seconds
SMS: vibtime123456,n
Re: vibtime set ok
n(0-15) 0 cancel vibration alarm, default value is 3 seconds, 3 seconds vibration alarm
ACC auto security vibration alarm instruction: connect power, ACC shut down (car key
switch off), after 3 minutes auto security, car shake illegally not turn on ACC within 5
seconds, device will send vibration alarm SMS.
If turn on vibration alarm phone call, device will call owner, owner can answer the call to
listen the car situation.
Not connect ACC, can text SMS to enter or exit car security.
4G GPS Tracking Device For Trucks Asset Security TK003 Module
Platform Application
The dealer platforms are different, please consult your dealer internet website
1 Real-time monitoring, network / phone search vehicles
GPS + LBS dual-mode positioning, GPS positioning accuracy of 2 meters, when GPS has
signal use GPS positioning, in a place with no GPS signal use LBS base station to locate,
dual-mode automatic switching, let your GPS vehicle positioning terminal communication
always online, make sure you monitoring 365 days x 24 hours always online.
Real-time phone monitoring: mobile login domain.
Real-time platform monitoring: computer login domain.
2 Track Playback
Login platform, click on the historical track playback function.
3 Statistics Report
Logistics companies can be set by the software to monitor the goods is notified of the
departure time, route point, line alarm, warning area, heavy hit the alarm, rollover
warning, driving speed, etc., we will comprehensive analysis of goods in transit situation
and issue reports.
Login platform, click statistics report.
4 Windows, Android, Ipad, Iphone, Wechat client please go to auto download service
platform, each client application please contact customer service.
4G GPS Tracking Device For Trucks Asset Security TK003 Module
FAQ:
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
