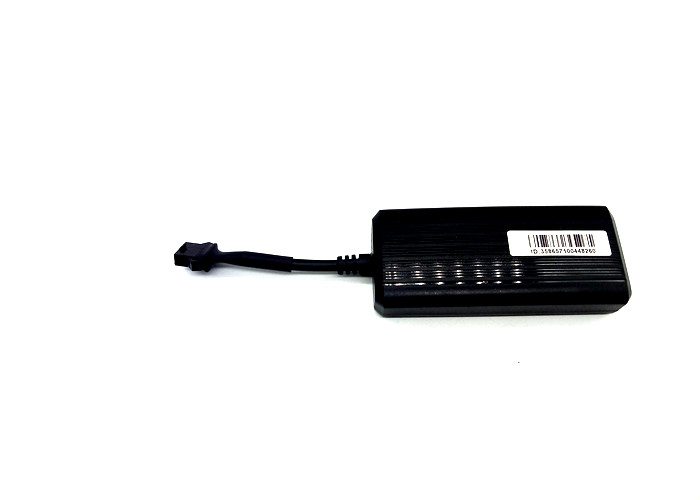

4G LTE Vehicle Wired GPS Tracker Motorcycle Car Alarm Vehicle Tracking Device System with APP
C003-01-4G GPS LOCATOR
Product features
1.Precision positioning with accuracy of 5 meters
2.GPS+LBS positioning
3.Functions:
ACC detected
Remote monitoring cut off power/fuel
Overspeed alarm
Geo-fence
etc...
4.Industrial design,workong voltage input range:9-100V
Application
Rental vehicle.credit vehicle,passenger vehicle,taxis,trucks,etc...
4G LTE Vehicle Wired GPS Tracker Motorcycle Car Alarm Vehicle Tracking Device System with APP
Device parameter
| Equipment parameters: |
| Electric Speicifications |
| Power supply mode: Battery power supply |
| Working voltage range: DC 9V - 100V |
| Working current: 12mA (24vDC) |
| Built-in battery capacity: 200mAH |
| Environmental Features |
| Working temperature range -20℃ - 70℃ |
| Storage temperature range, low - 30 ℃ -80 ℃ |
| Working humidity range - 20%-80%RH |
| Communication frequency band |
| LTE | FDD-LTE :B1/B3 |
| | TDD-LTE :B38/ B39/ B40/ B41 |
| Chip Model | MT6261 |
| GSM/EDGE | B3/B8 |
| SIM CARD | Standard SIM card |
| Aerial | Internal |
| GPS/LBS Positioning Characteristics |
| Cold start time - average 34 seconds |
| Hot start time - average 2 second |
| Sensitivity (tracking) -162DBM |
| Shape |
| Dimension:90mm*40mm*15mm |
| Houseing Material:Plastic |
| Weight:50g |
4G LTE Vehicle Wired GPS Tracker Motorcycle Car Alarm Vehicle Tracking Device System with APP
Product Installation Introduction
Equipment built-in GSM antenna and GPS antenna, the installation should ensure a positive upward (toward the sky), and the above non-metal shield block, the proposed installation location:
(1) Below the windshield inside the decorative panel;
(2) Car meter (surface of non-metallic materials) around the shelter;
(3) Rear windshield below the decorative panel;
(4) Inside car door or pillar;
(5) Within the dashboard or under back seat hidden
Description
| Material | Plastic |
| Positioning accuracy | 5-10m |
| GPS module | MT6261 |
| Frequency Band | GSM:850MHz,900MHz,1800MHz,1900MHz |
| 4G:FDD-LTE 800/850/900/1800/2100/2600MHz |
| GPRS: Class12, TCP/IP |
| GPS Sensitivity | -159dBm |
| GPS module | MTK6261 |
| Platform | SMS + APP + computer |
| Working Voltage | 9-100V DC |
| Backup Battery: | Built-in battery 200mAh |
| GPS positioning time | 25s |
| Working temperature | -20℃～+70℃ |
| Storage temperature | -40℃～+85℃ |
| Product size | 90(L)×40(W)×15(H)mm |
| Special Functions | Vibration alarm, power failure alarm, SOS alarm, movement alarm, fence alarm, overspeed alarm |
