Product Description
| GSM | 850/900/1800/1900/Quadband |
| 3G | optional |
| 4G | optional |
| GPRS | Class12,TCP/IP |
| WorkingVoltage | 9-24VDC |
| Workingcurrent | ≈22mA(12vDC) |
| Workingcurrent | ≈12mA(24vDC) |
| GPSlocatingtime | Coldstart≈38s(Opensky) |
| Warmstart | ≈32s |
| Hotstart | ≈2s(Opensky) |
| GPSPrecision | 10m(2DRM) |
| Workingtemperature | -20℃~+70℃ |
| Workinghumidity | 20%~80%RH |
| Measurement | 87(L)×43(W)×14(H)mm |
Its compact shape, Easy to install
3G WCDMA 850/900/1900/2100
GPRS/GSM wireless network
Built-in acceleration sensor for vibration alarm and power saving
Built-in battery ,power disconnection alarm function
Super wide working voltage input range: 9-80V
Support SMS query location information
High sensitive GPS chipset
The ACC ignition signal detection, vehicle status indicators
Alarm / Disalarm
Watch dog function, reboot automatically after breakdown
Suitable for Vehicles/Cars/Motorcycles/E-bike etc

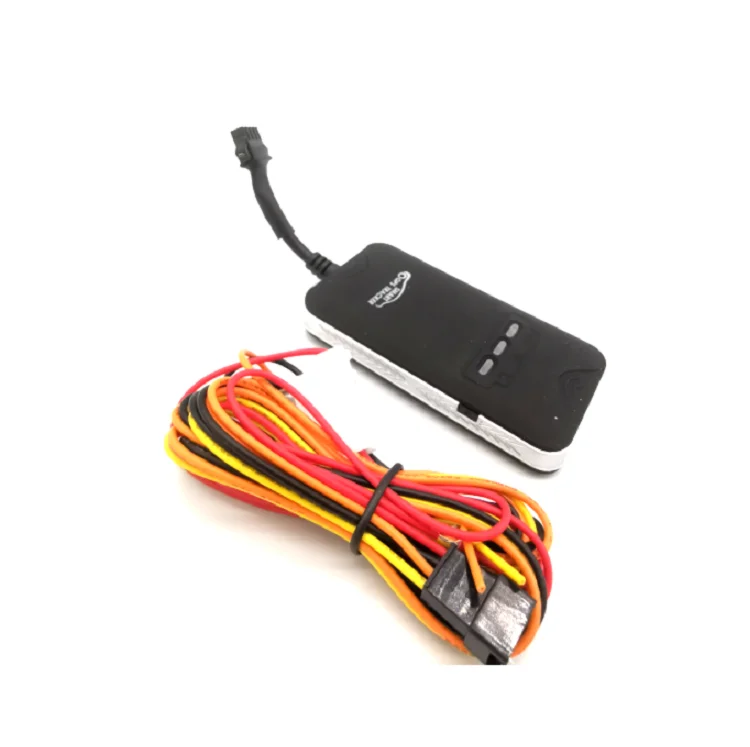

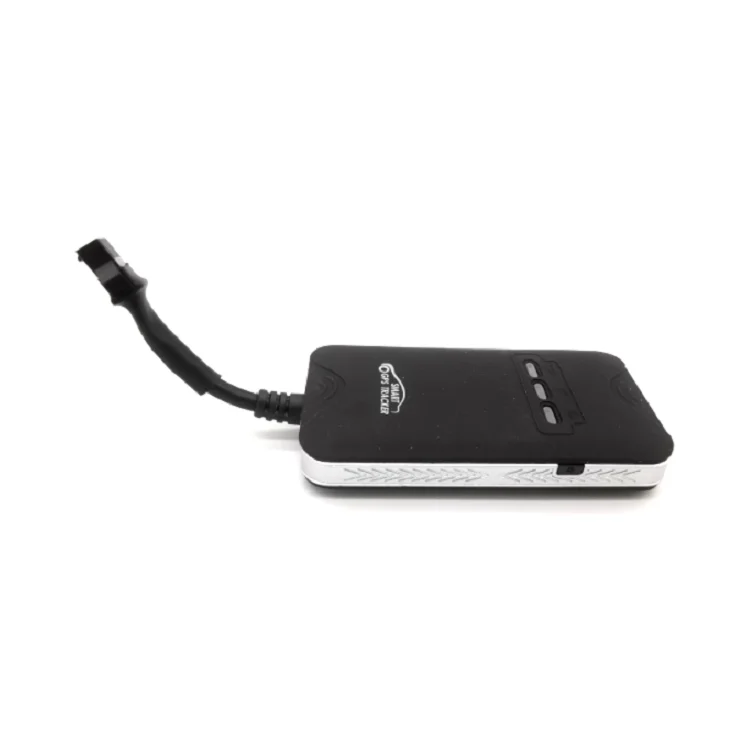

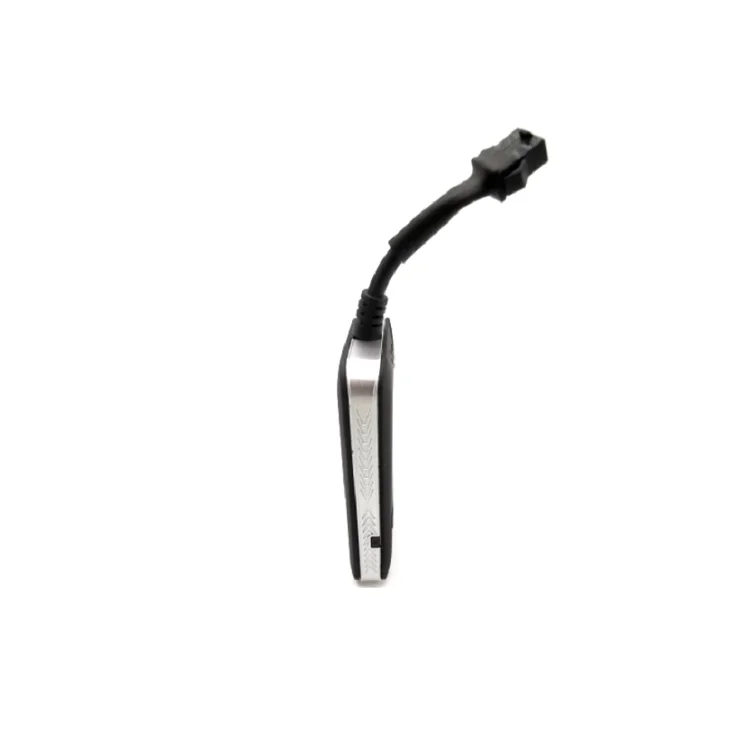

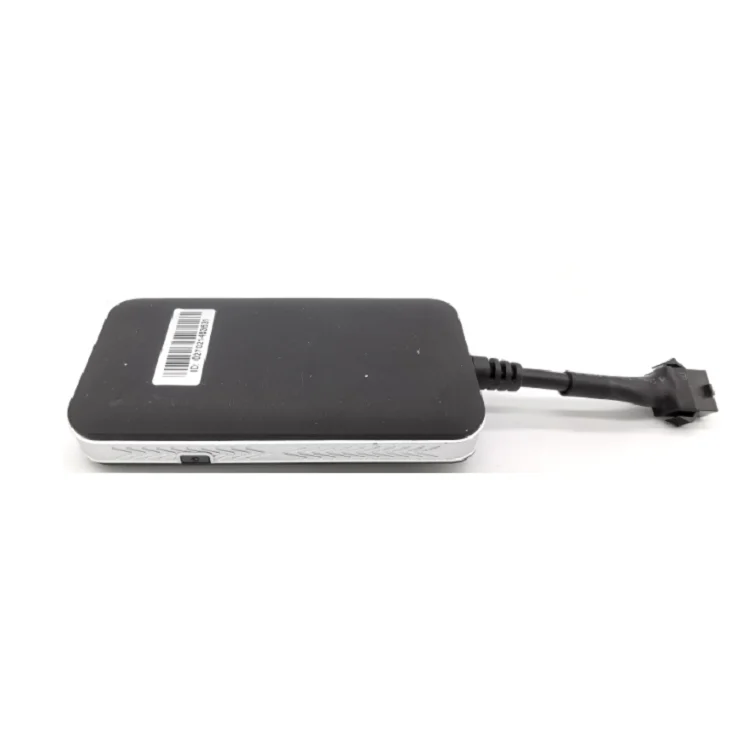

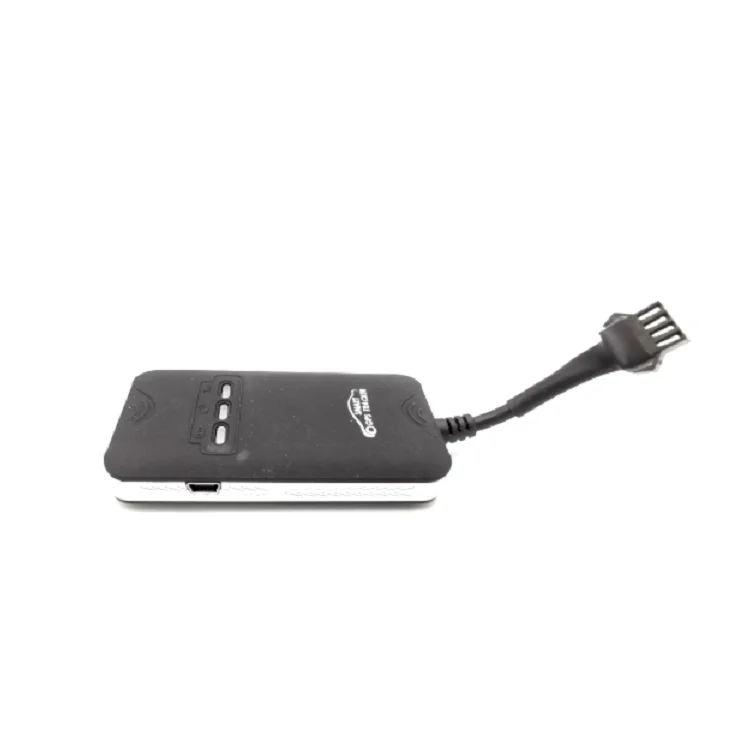

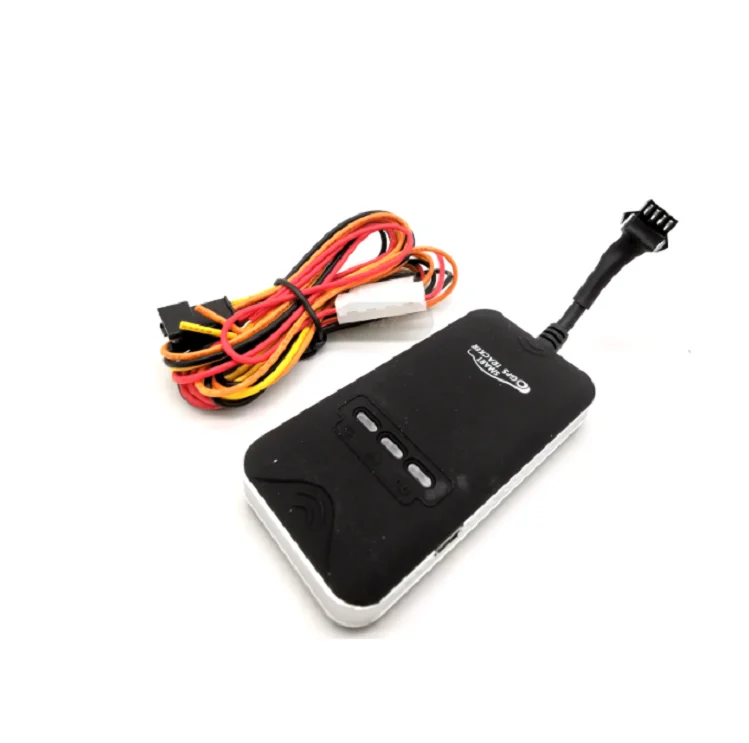

Car 3G GPS Tracker Built-In Acceleration Sensor With Alarm Function
| CENTER |
| Text command | Parameter | Sample |
| CENTER Add | 710#number# 711#number# | 710#13500135000# 711#13800138000# |
| CENTER Del | D01# D02# | D01# D02# |
| Command Description | 1)Center number can control the oil and power and resume factory settings 2) Center number can receive the call and text of vibration alarm and over speeding alarm. 3) SIM must display the income call number to control oil and power. 4) Only one number can be center number. 5) Change center number must resend the command. 6)Add new center number by CETNER,A, and delete by CENTER,D |
| Command Feedback | Successful Setting:Add admin account 1 OK! |
Car 3G GPS Tracker Built-In Acceleration Sensor With Alarm Function
| STATUS |
| Text command | Parameter | Sample |
| STATUS | 902# | 902# |
| Command Description | The command is designed for checking the device’s working status. |
| Command Feedback | External power:ON/OFF GSM Signal:HIGH/MIDDLE/LOW GPS:FIXED/UNFIXED RELAYER:DISABLE/ENABLE Vibrate Warning:ON/OFF Pause:ON/OFF |
5.Installation
5.1 Preparation for the installation
5.1.1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
5.1.2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.
5.1.3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder
5.1.4 Put back the front cover and screw it up.
5.1.5 Connect the device to the 9-24Vpower supply.(the red LED constant glow)
5.1.6 Install the device in the hidden place of the car；
The SIM card must be with GPRS function and enough deposit. If your SIM card need input PIN when power on, please cancel it.
