IP67 E-bike GPS Tracker Support Waterproof And Real Time Tracking

Product Categories
SHENZHEN YITUOWULIAN SYSTEM CO.,LTD
Contact Now

IP67 E-bike GPS Tracker Support Waterproof And Real Time Tracking

  • 1
  • 2

Brand Name : caxtrack

Model Number : CA-V5W

Certification : CE/ROHS/FCC/SGS

Place of Origin : China

MOQ : 10 pcs

Price : negotiation

Payment Terms : T/T or western Union or paypal

Supply Ability : 100,000pcs per month

Delivery Time : 1-10 working days after received your payment

Packaging Details : Packed in carton firstly

Product Name : E-bike GPS Tracker

Weight : 0.067kg ( Battery and Power cord Included )

GPS sensitivity : -159dBm

Network : 2G GSM Network

GPRS chip : MTKv6261

Band : 850/900/1800/1900MHz

Rechargeable Lithium-Polymer Battery : 140mAh

Working currency : 20mA / 12V

torage Temp. : -40°C to +85°C

Position Accuracy : 10m

Operation Temp : -20°C to +55°C

Work Voltage : 9-80DCV

Function1 : Waterproof IP67

Dim. : 90*33*15mm

Function2 : E-bike Anti-Theft

Contact Now

E-bike GPS Tracker Support Waterproof And Real Time Tracking





Performance Parameters:



Content

Specs.
Name E-bike GPS Tracker

Network

2G GSM

Band

850/900/1800/1900Mhz

GPS chip

UBLOX

GPS sensitivity

-159dBm

GPS accuracy

10m

Time To First Fix

Cold status  38s

Warm status  15s

 Hot status  1s

voltage input

9－80V  input



Battery

Build-in 3.7V 140mAh Li-ion battery

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +55°C

Humidity

5%--95% non-condensing
Size  9cm x 3.3cm x 1.5cm
Weight  0.067kg ( Battery  and Power cord  Included )
Waterproof  IP67



Description:



  1. GSM 850/900/1800/1900MHZ system global general;
  2. Car GPS Tracker built-in switching power supply, exceed wide voltage input range: 9-80 VDC;
  3. Waterproof GPS Tracker GPS continuous GPS positioning, GPRS report regularly;
  4. Waterproof GPS Tracker Support SMS message to check the location info;
  5. It’ll sleep automatically when it’s still and will be awakened by moving, therefore, it can save power a lot.
  6. It supports geofencing set by the webpage GPS tracking platform/smart phone APP/messages, once it’s out of fence, a warning will be sent to the monitor phone number.
  7. Built-in vibration sensor, realization vehicle anti-theft intelligently;
  8. ACC the ignition signal detection,vehicle status prompted;
  9. Built-in backup battery, realize the illegal cut the line alarm;
  10. Automatic failure recovery;
  11. Waterproof design, Easy to install and setup.

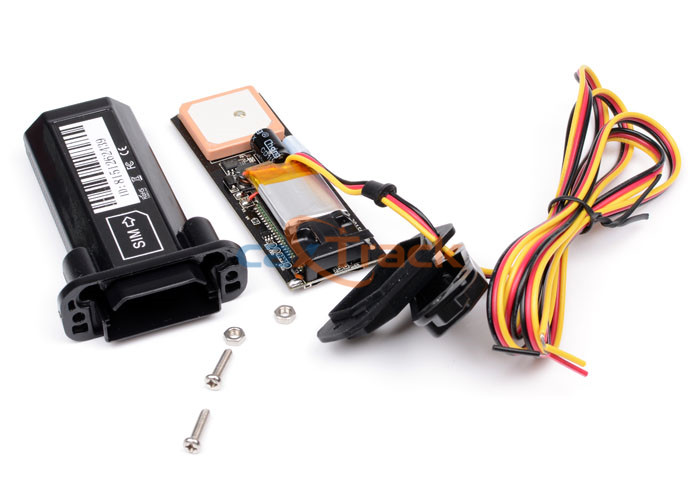

Detail Pictures:

IP67 E-bike GPS Tracker Support Waterproof And Real Time Tracking

IP67 E-bike GPS Tracker Support Waterproof And Real Time Tracking





  • IP67 dust and water proof
  • Built-in Li-ion battery, Power disconnection alarm function
  • Watch dog function,reboot automatically after breakdown





Applications :



  • Motorcycles Anti-theft
  • Vehicle rental / Fleet management Solution.





Gurantee:



1. All of our product is free to use the Tracking service server in 24 hours each day

2. All of our product there is a 2 year quanlity assurance.

3. Sample fee will not  be returned.





Product Configuration:



1. Standard configuration



1  Power Line 1pcs
2  CA-V5W Device 1pcs
3  User Manual 1pcs
