Large Battery And Magnet GPS Tracker Product For Vehicle Tracking
Product introduction:
CA-P5D is designed with MTK Chip solution and plastic shell, the dimesion is only 64mm length, 58mm width and 20mm Height. The GPS antenna is ceramic antenna and the antenna side should face up to the sky. user can set five different work mode and meet different kinds of customers' requirements.
Specification:
Freqeuncy: 850Mhz, 900Mhz, 1800Mhz and 1900Mhz
Band: Quad band for all over the world
GPRS: Class12, TCP/IP
Standby current: less than 3uA
GPS Accuracy: less than five meters
Sensitivity: -159dbm
Positioning: GPS AND LBS dual mode
Dimension: 64(L)mm*58(W)mm*20(H)mm
Device weight: it is only 130g
Battery: Dry battery or rechargeable Li-ion battery.
Normal sleeping mode introduction:
When device working mode setting is n=0, device is under normal sleeping mode, defaulted data sending interval time is 30seconds, if device is always on static status, it will goes to sleeping mode after 5 minutes to save power. To active it again, user can vibrate ,call or send a command to the device. If user wants to forbidden vibrate awaken the device, you can send command #6666#wake#0# to device, at this time, device will not be waked up even vibrate it and it will work for 10minutes at max after awaken then goes to sleeping mode again. On the other hand, #6666#wake#1# is the command for permitting vibrate awaken device.
Interval time setting command is #6666#sleep#5#, here the interval time is 5 minutes set, time range from: 1- 99999 minutes, when interval time is 99999minutes, it is the best way to save power. After device goes to sleeping mode, device will send the data according to the time interval set by the admin in advance. Li-ion battery version battery is rechargeable; user can use usb to recharge it while power is not enough.
Remember device must be on while charging.

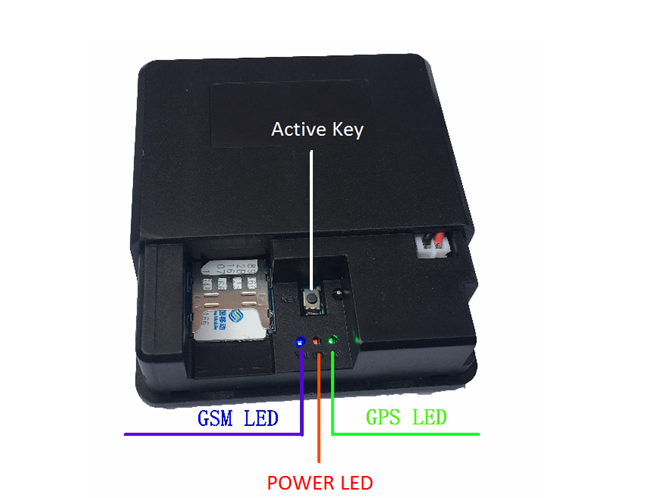

LED Indicator:
- Red LED: Power indicator LED
| LED Status | Meaning |
| Quick Flash | Device is In Charging work mode |
| Slow Flashing | Device is Working normally status |
| Bright | Wake up status |
- Blue LED: GSM Indicator LED
| LED Status | Meaning |
| Quick Flash | Device is working normally and uploading data to server. |
| Flashing | GPS Tracker is working normallyand the GSM antenna can receive GSM signal normally. |
| Bright | No GSM Signal or can not search GSM signal |
- Green LED: GPS Indicator LED
| LED Status | Meaning |
| Flashing | GPS tracker is working normally and GPS signal is ok. |
| Bright | No GPS signal or can not search GPS siganl |
SMS Command introduction:
1. Add administrator command
#6666#AAD#1#cell phone# stands for adding the first administrator number. for example: #6666#AAD#1#18665990450# means the first administrator SIM card number is 18665990450.
and one device and add two different administrators.
#6666#AAD#2#Cell phone# stands for adding the second administrator number. for example:
#6666#AAD#2#13652383606# means the second administrator SIM card number is 13652383606.
2. Delete administrator number command:
#6666#DAD#1# stands for deleting the first administrator cell phone number.
#6666#DAD#2# stands for deleting the second administrator cell phone number.

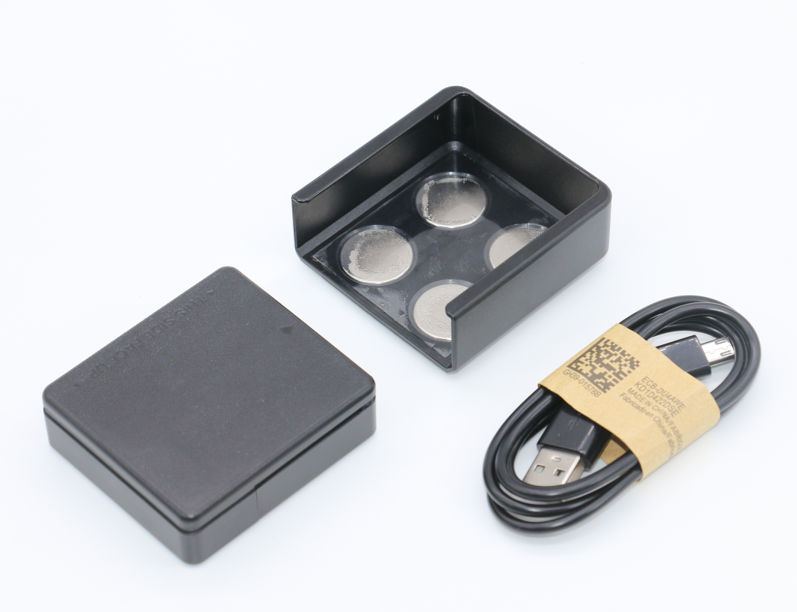

Picture:
Applications:
1. Car Rental / Fleet management and so on.
2. Container/cargo/asset tracking
Gurantee:
1. All of our product is free to use the Tracking platform server for first year.
2. All of our products there is a 2 year quanlity assurance.
