GPS Tracker Device Support Emergency Triggering Alarm And Geo Fence
Performance Parameters:
| Content | Specs. |
| Dimension | 87mm*57mm*25mm(L*W*H) |
| Gross Weight | 0.85kg |
| Network | GPRS |
| Band | 900/1800/1900MHz or 850/900/1800/1900MHz |
| GPS chip | UBLOX Chip |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5 meters to 30 meters |
| Time To First Fix | Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
| Input Voltage | DC9V To 36V |
| Battery | Chargeable changeable 3.7V / 1.2Ah Li-ion battery |
| Standby work current | Less than 30mA |
| Storage Temp. | -40°C to +85°C |
| Function | Emergency Triggering Alarm |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
Description:
1.Emergency triggering alarm
The blue wire connects the positive of the alarm button, and the black wire connects the negative of the alarm button.
2.Geo-fence
Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
Set up: The user can Send SMS “stockade + password + space + MinLatitude, MinLongitude; MaxLatitude, MaxLongitude” to unit to set the restricted district. In case of breach, it will send SMS “stockade! + geo-info” to the authorized numbers.
For example send SMS “stockade123456 22.548123, 114.081234; 22.549123, 114.082234” to the unit.
Remark: The first latitude & longitude is coordinate of min of the Geo-fence, while the second latitude & longitude is the coordinate of the max. It will alarm one time in each setting.
Cancel: Send SMS “nostockade + password” to deactivate this function.
This function will be out of effect after the unit moves outside the district.
3.Auto Track
Report a Geo-info at 30 seconds intervals to the online position platform for 5 times: Send SMS “at30sum5” to the device. The max intervals is 65535 seconds. You can send “at30sum0” for heaps of times to platform.
Send“noat123456” to the tracker, the tracker will stop transmitting the data to the platform.
If the platform support this function, it can be operated on the platform straightly.
4. Overspeed alert
Set up: Send SMS “speed+password+space+080” to the device (support the speed is 80km/h).
For example, send SMS “speed123456 080”. "speed" as instructions, "80" as limit speed, “123456”as password.
Cancel: Send SMS “nospeed+password” to deactivate the overspeed alert.
Picture:
Gurantee:
1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. optional configurations

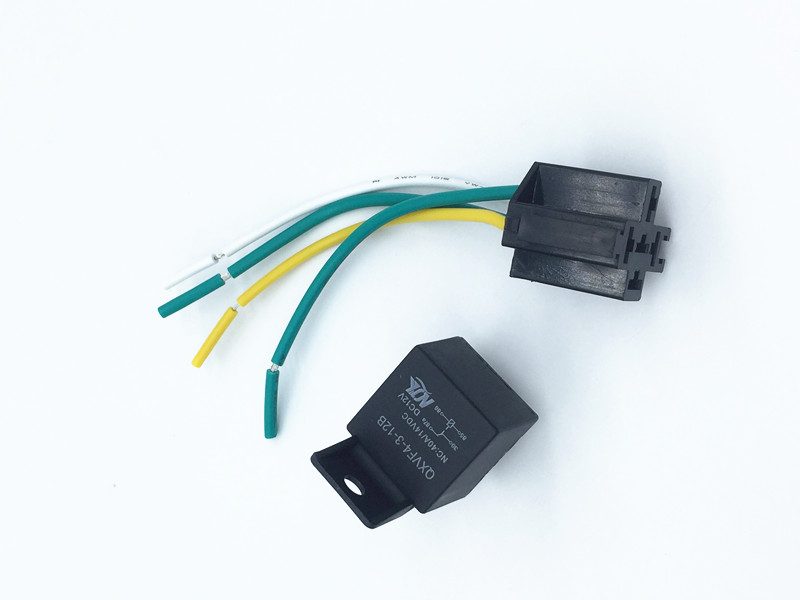

1) Accessories (relay) for cut fuel/circuit
2) High capacity backup battery, it can works for 12h
3) Temperature sensor and fuel sensor
The indicator in the device can turn into red and blue color. Insert the SIM card and install the tracker in the car, the red indicator is on. In 10 seconds, the device will begin to work and search the GSM/CDMA signals as well as the GPS signals. When the device is communicating, the red indicator blinks very fast. The blue indicator will keep flashing every 2 seconds when the GPS module is in standby mode. When the blue indicator is not lighting, the GPS module is working but hasn’t fixed position, after it has fixed position, the blue indicator is lighting.
Product Tags:
|
|
Automobile Car Gps Locating And Tracking Device Support Emergency Triggering Alarm And Geo Fence Images
|
