4 Channels 1080P SD Card Mobile DVR 3G 4G WIFI For School Bus
Model Name: SD210
Brand Name: CAX

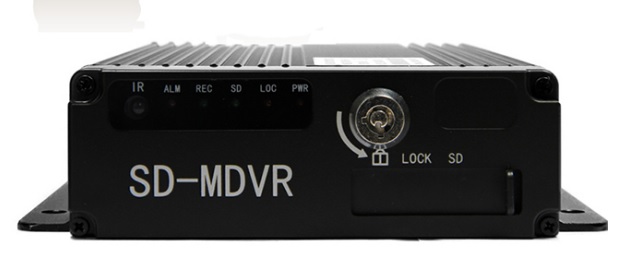

PWR: Power Indicator LED, LED on means powered has connected.
ARM: Alarm Indicator LED,LED on means alarm event is happening.
REC: Video recording indicator LED, LED means in the recording.
SD1: SD card 1 indicator LED,
LED On- Card exists but not recording LED.
LED Flash- card 1 is recording.
LED OFF- Card does not exist
SD2: SD card 2 indicator LED
LED on- Card 2 exists but not recording.
LED Flash- Card 2 is recording
LED Off - Card does not exist
LOC: SD lock indicator LED, LED on stands for SD Lock is open.
IR Remote Receiver:
IR : Infrared remote control receiving hole.
SD Lock: Lock - It's used for unload hard disk. Device will power off automatically if power on when HDD
lock is open.
SD Card Slot: SD, It's used for unload SD card or SIM card.

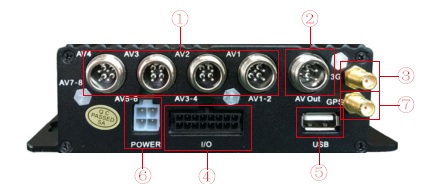

Video and Audio Input interface: 1 to 4 channels with DC 12V output.
Video and Audio Input interface: Video and Audio output interface with DC 12V Output.
3G Antenna Port: connect 3G Antenna interface
I/O: With alarm input and output, serial port etc.
USD Interface: It's used to import or export data or upgrade
Power Input interface: Input Voltage DC 8V to 33V
Red cable connect power positive.
Black cable connect power negative.
Yellow line is ACC signal cable.
GPS Antenna Port: connect GPS Antenna interface.

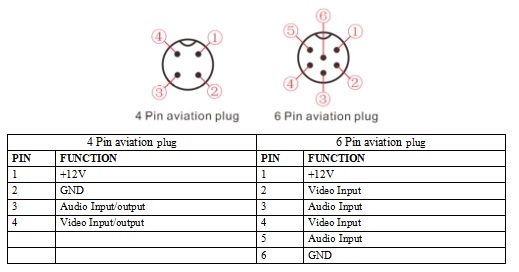

AV input PIN description:

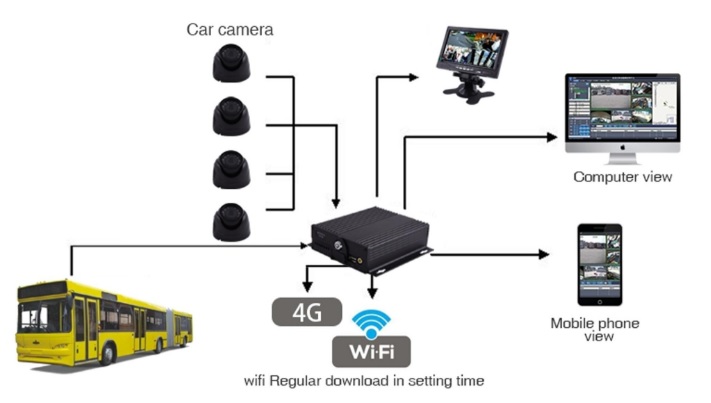

SD Card Application:

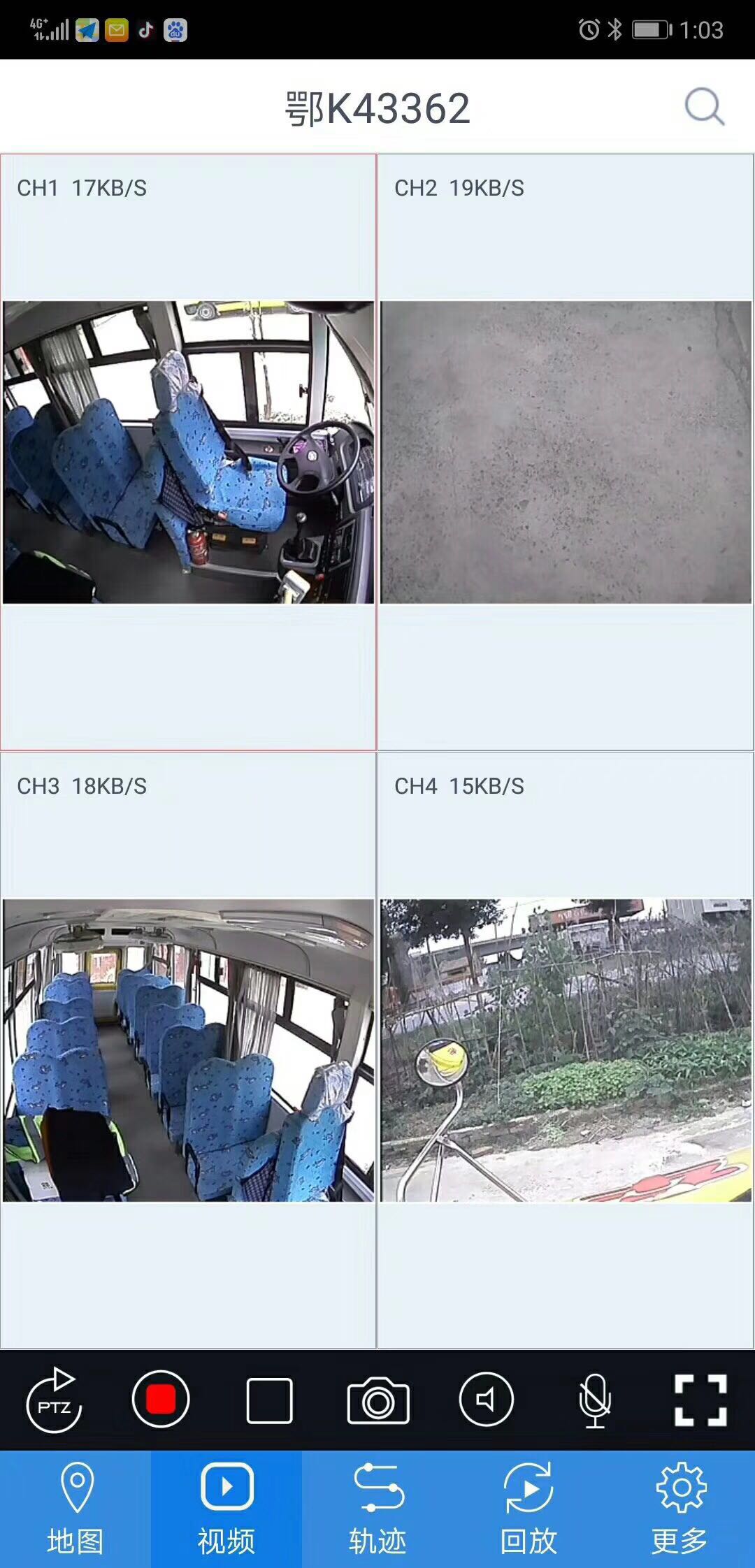

Video Online Checking:
MDVR Factory:

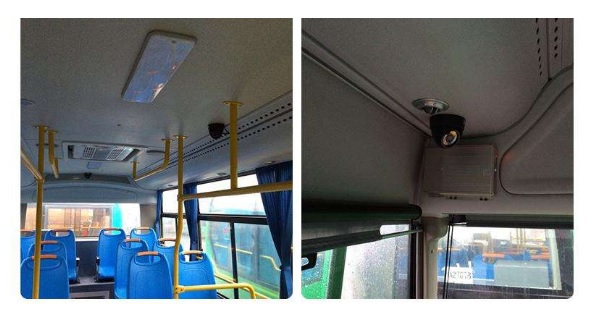

Installation Picture:
MDVR Certificate:
MDVR FAQ:
Question 1: How can we buy your mobile DVR product?
Answer 1 : You can pay it via T/T, paypal,western union,After we receive your payment, we will send
goods to you as soon as possible.
Question 2: Can we use our own server?
Answer 2: Yes,we can provide platform software to you. you only need to buy one server.
Question 3: Can we use 128G SD Card?
Answer 3: Yes, of course.
Question 4: Can we use 1080P camera?
Answer 4: Yes, but first you also need to buy 1080P SD card mobile product.
