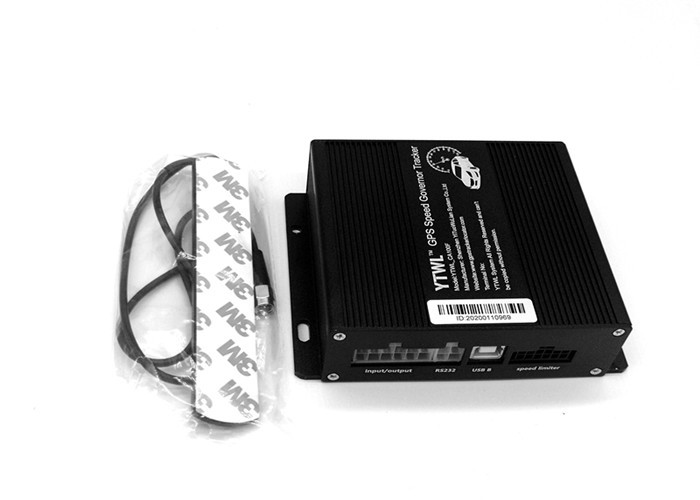

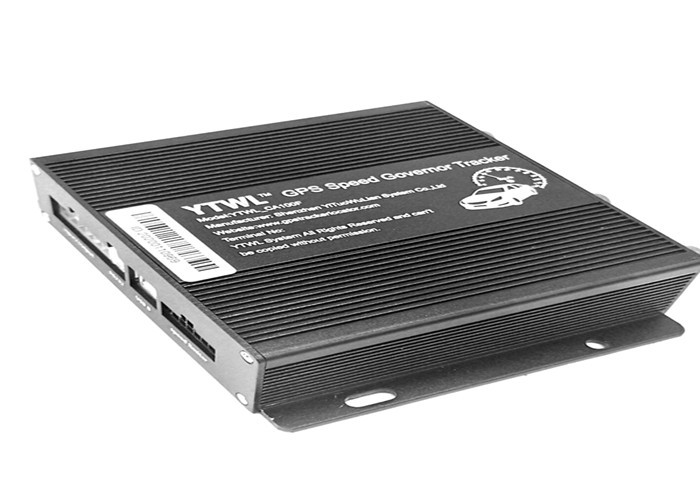

Truck Speed Limiter Car Electronic Engine Governor With Free GPS Tracking System

Product Categories
SHENZHEN YITUOWULIAN SYSTEM CO.,LTD
Contact Now

Truck Speed Limiter Car Electronic Engine Governor With Free GPS Tracking System

Brand Name : cartrack

Model Number : CA100F

Certification : CE/ROHS/FCC/SGS

Place of Origin : China

MOQ : 10 pcs

Price : negotiation

Payment Terms : T/T or western Union or paypal

Supply Ability : 100,000pcs per month

Delivery Time : 1-10 working days after received your payment

Packaging Details : Packed in carton firstly

Processing Chip : ARM

Network : GSM GPRS 3G 4G WCDMA LTE

engine cut off : Control engine remotely

OEM : Accept

Function : Controlling Speed, Vehicle Speed Limiter

Product name : Overspeed Governor

Applicable : general

Business type : manufacturer

Contact Now



Ethiopia Standard Truck Speed Limiter Car Governor with Free GPS Tracking System



1 Product Specifications

Dim. 117*92*31 (mm)
Weight 280g
Network GSM/GPRS/GPS
Band 850/900/1800/1900MHz
GPS chip U-blox
GSM/GPRS Module SIM800C
Bluetooth Module BT360I
CPU STM32F105RBT6
Power IC TD1509-ADJ
Anti-jamming Strengthened Anti-jamming
GPS sensitivity -159dBm
GPS accuracy 5 m
The manual
  • The expected behavior of a vehicle where a road speed limiter has been fitted
  • Driving tips for a vehicle where road speed limiter has been installed
  • What should not be done to the installed road speed limiters
  • What should be done in case of malfunction
  • The liability of the owner or driver of vehicle for tampering with the road speed limiters

2. Speed Limiter General Requirements

Ethiopia Standard Truck Speed Limiter Car Governor with Free GPS Tracking System



  1. The speed limiting function shall be performed progressively in such a mariner that excessive juddering or discomfort is not caused;
  2. All components necessary for full function of the speed limiter or the Speed limiter device shall be energized whenever the vehicle is being driven;
  3. . For the purpose of anti-tampering of the setting of the "set speed" of a speed limiter device, the connection points on a speed limiter device for adjustment of "set speed" shall be properly sealed and protected from unauthorized adjustment;
  4. Speed limiter device shall be so designed, constructed and assembled and fitted to the vehicle to make it maximum tamper proof and fail safe, against various factors such as disconnection / failure of various components e.g. power supply, speed sensor, mechanical actuator system, linkages etc. or any unauthorized modification and adjustment to the system;
  5. All speed limiter device system shall able to be checked for accuracy and functionality;
  6. The speed limiter device system shall be able to be verified. Authenticated and tested whilst the vehicle is "on" the road.
  7. Speed limiter devices shall be calibrated and maintained in a good working order; and capable to limit the speed of a vehicle at the set speed as stipulated by the regulatory body.



Ethiopia Standard Truck Speed Limiter Car Governor with Free GPS Tracking System

  1. Road speed limiting device shall have a users and technical's manual, both written in English/Amharic ;
  2. The recorder shall incorporate a combination of an onboard and off-board mechanism for recording and storing the speed of the vehicle;
  3. The speed shall be recorded in Km/h at not more than five seconds interval;
  4. The retrieved data shall clearly and in an unambiguous manner display the date (dd Imm Iyyyy) of recording.




3  Application Field:

  1. For School Bus ;
  2. For tour bus and passenger car management ;
  3. For logistics vehicle monitoring and management ;
  4. For tank truck monitoring and management.
  5. For limit the speed of vehicles

4 Parts list:

     Power wire
     Executor wire
     Buzzer (optional)
     GPS Antenna
     GSM Antenna
     SIM Card Slot
     Bluetooth printer
     Bluetooth antenna

Truck Speed Limiter Car Electronic Engine Governor With Free GPS Tracking SystemTruck Speed Limiter Car Electronic Engine Governor With Free GPS Tracking System
