TK003 4G GPS Tracker Vehicle Car Motorcycle GPS Tracker With ACC Ignition Checking GPS Tracker
Product Features:
| GSM two-way | 850/900/1800/1900 MHz |
| GPS positioning | GPS sensitivity: -162dBm |
| GPS positioning accuracy: 2 meters (under open conditions) |
| Speed accuracy: 0.1 m/s |
| Cold start time: <38 seconds |
| Warm start time: <32 seconds |
| Hot start time: <2 seconds |
| Base station positioning | Support base station positioning, positioning accuracy: 10~200 meters |
| Vandalism | Support anti-counterfeiting base station, anti-detection function |
| Working current | Average current <30mA (12VDC), maximum current <100mA (12VDC) |
| Operating temperature | -20~+65℃ |
| Material | Engineering plastics |
| Weight | 50G |
| Network | 4G LTE/3G/2G |
| Dim. | 90*40*15mm |
| Storage Temp. | -40°C to +85°C |
| Accuracy | 5-20m |
| Operation Temp. | -20°C to +55°C |
| Humidity | 5%--95% non-condensing |
| Working Voltage | 9-80V |
| CPU | MTK6261 |
| RAM | 32MB |
| ROM | 32MB |
| Waterproof | Optional |
| Content | Specs. |
| Dim. | 90 mm x40 mm x 15 mm |
| Weight | 50g |
| Network | GSM/GPRS/GPS |
| Band | 850/900/1800/1900 MHz |
| GPS chip | U-B |
| GSM module | MTK6261 |
| GPS accuracy | 10m |
| GPS locating time | Cold start≈38s(Open sky) |
| Warm start≈32s(Open sky) |
| Hot start≈2s(Open sky) |
| Work voltage | DC9V-100V |
| Storage Temp. | -40°C to +85°C |
| Humidity | 20%--80% |
TK003 4G GPS Tracker Vehicle Car Motorcycle GPS Tracker With ACC Ignition Checking GPS Tracker
Installati Note:
3.1.1 Open the box, check is the equipment correct, are accessories complete, otherwise please contact your dealer
3.1.2 SIM card selection, the terminal needs to insert a WCDMA/GSM SIM card, GSM card Unicom mobile or optionally (GSM networks worldwide),WCDMA Unicom 3G.
3.1.3 SIM card installation, open the terminal device, take off the metal cover SIM card slot, SIM card chip insert into the slot, covered with a metal slot cover.
Note:
(1) Before installing or removing the SIM card, first turn off the device power;
(2) Terminal SIM card need to open GPRS function;
(3) Terminal SIM card need to open the Caller ID function (depending on customers prefer or not);
(4) If your SIM card needs to enter SIM PIN, please consult your phone's user manual to turn off SIM PIN;
(5) Make sure that the SIM card has charges;
Terminal Outlet Defined
(1) Red line connects positive power;
(2) Black line connects negative power;
(3) Orange connects ACC;
(4) Yellow connects relay
Please use the original supplied power cord, the red line is the positive power supply, black for negative power, negative power installation, choose a separate grounding or connect metal, do not connect with the other ground wire together. If need ACC automatic anti-theft function, ensure to connect the ACC line, the device will detect the ACC state to decide whether to enter the security mode; If not connect to ACC line, the vehicle will enter the security mode, vibration occurs under the security mode, vibration alarm will be triggered.

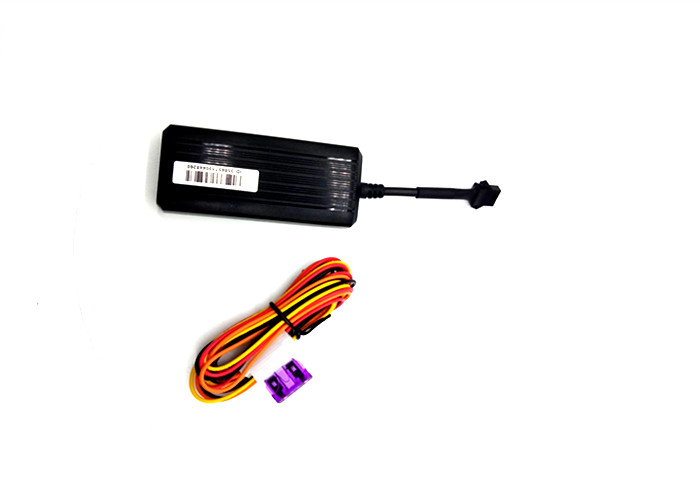

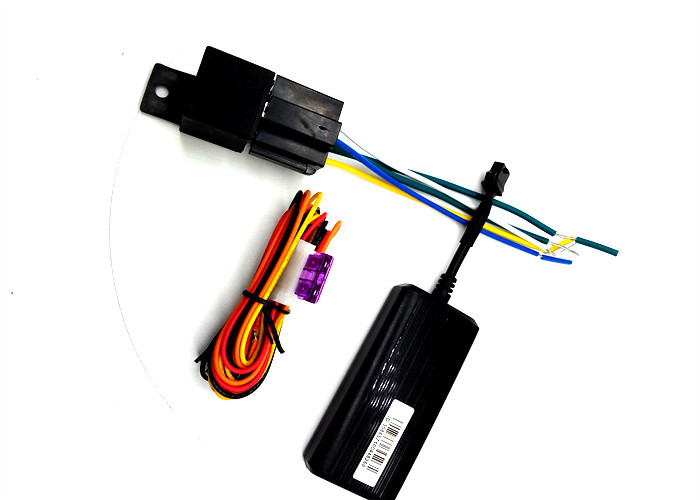

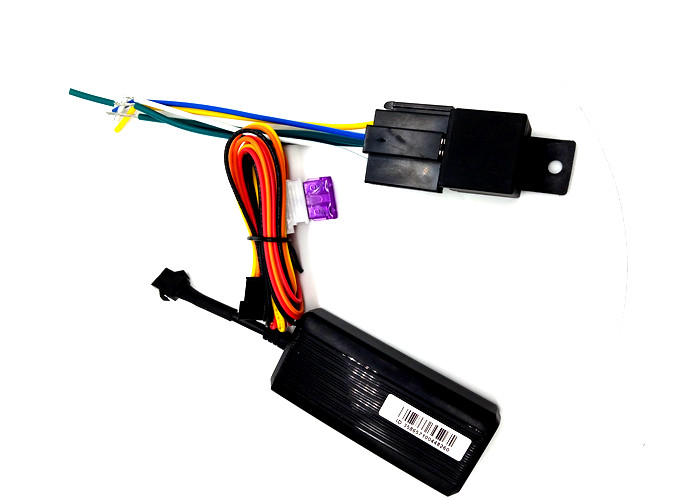

Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
TK003 4G GPS Tracker Vehicle Car Motorcycle GPS Tracker With ACC Ignition Checking GPS Tracker
Indicators
3.5.1 Red light - Power Indicator / OBD Work Lights
| LED Status | Meaning |
| Flash once in 2 seconds | Normal operation / OBD working properly |
| No light | Shutdown / OBD sleep |
3.5.2 Yellow indicator light -GSM
| LED Status | Meaning |
| Flash once in 2 seconds | GSM initialization |
| Light Always | GPRS is normal / already online |
| No light | GSM sleep |
3.5.3 Blue LED light -GPS
| LED Status | Meaning |
| Flash once in 2 seconds | GPS signal searching |
| Light Always | GPS targeted |
| No light | GPS sleep |
Technical parameter:
| GPS | functions: |
| protocol: GT06 | 1)support ACC ignition checking |
| G-sensor : BS250E | 2)support Relay for cutting off power/fuel |
| input power: 9-100V | 3)built-in GPS antenna: 18*18*4 mm |
| power IC: SL3036H | 4)built-in battery, Real time tracking |
| GSM module: MT6261 | 5)Geo-fence, over speed alarm, |
| GPS module: Ublox | 6) platform /APP supported |
Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
Under Front windshield；
In the front instrument panel；
Under back windshield；
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside. Please ensure the
receiving side of the device is face up and without metal cover.
Note:The metal cover will lessen the receiving of GPS signals.
Warranty
In particular that:
1. Any technical changes to the product in the future without prior notice.
2. Any changes of appearance, color of products, to prevail in kind.
3. The warranty card is only available in the following listed IMEI / ID Number warranty Services.
4. Please keep this service card, please show this card and the original purchase receipt for warranty.
5. See the table below illustrate specific warranty.
