Mini GPS Tracker Support Power Off Alert And Geo Fence Function
Performance Parameters:
| Content | Specs. |
| Production Name | Mini Car Tracker |
| Functions1 | Power Off Alert |
| Functions2 | Geo Fence Function |
| GSM Chip | MTK Chip |
| Band | 850/900/1800/1900Mhz |
| GPS chip | MTK Chip |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5-30m |
| voltage input | 9.5－60DCV input |
| Working currency | 20mA/12V |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 20%--80% RH |
| Weight | 45g |
| Network | 2G GSM Network |
| Dim. | 90*45*10mm |
Features:
GSM Quad-band frequency (Global use);
Wide input voltage range: DC12-60V;
Build-in vibration sensor, Smart Anti-theft ;
ACC ignition detection, vehicle status notification;
External SOS button, used in immergence case use;
External Relay, used to cut off engine power or oil remotely;
External Microphone, used in voice monitoring case (Optional);
Build-in back-up battery, support illegal main power cut-off alarms (Optional);
Support OBD easy installation (Optional);

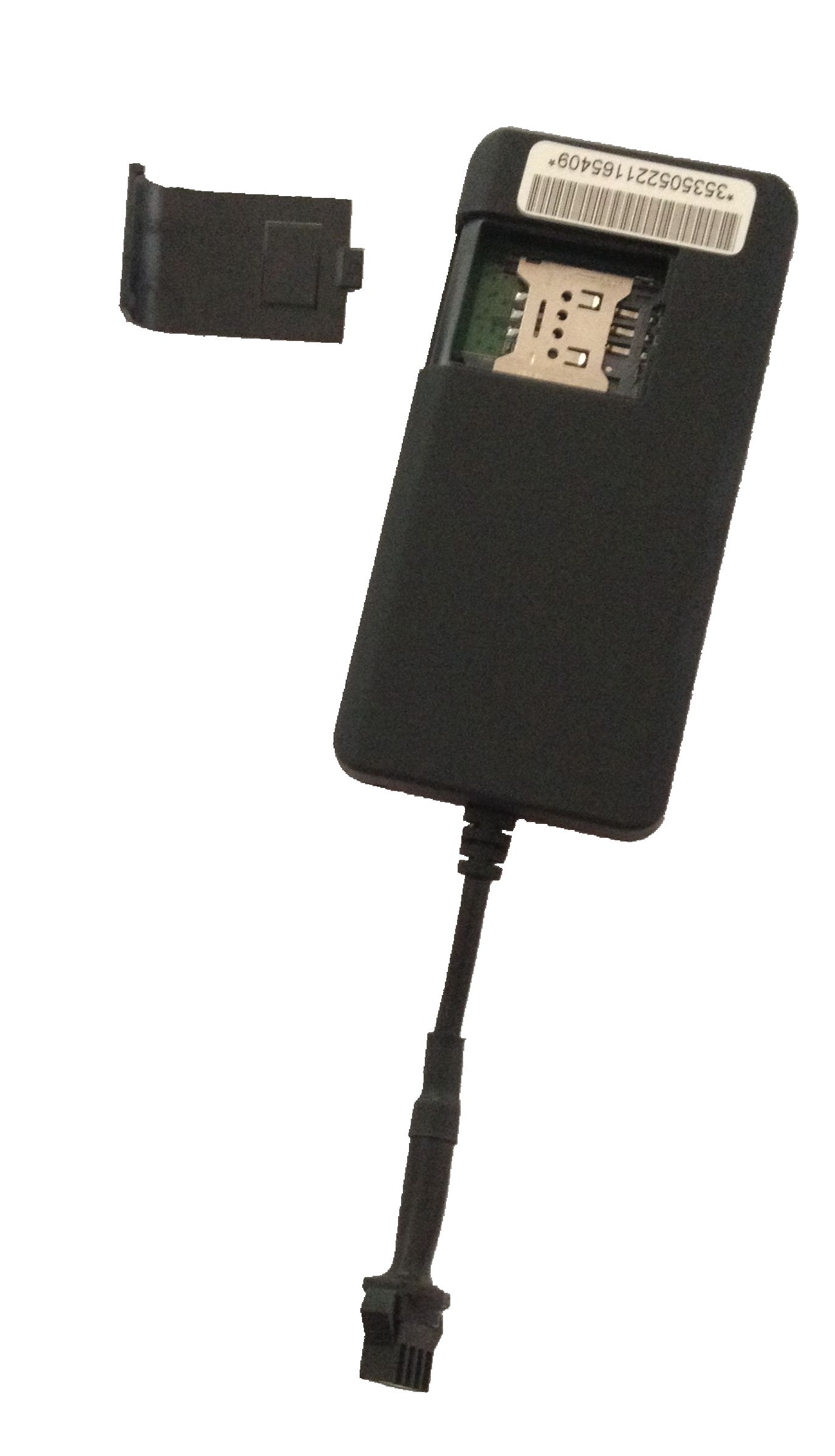

Picture:
1. Red LED (Power status indication)
| LED Status | Indication |
| Quick flashing, On 0.1s, off 0.1s | Low power warming |
| Constantly on | Charging |
| Slow flashing, On 0.1s, off 2s | Battery Charged/Working Normal |
| Constantly off | Voltage too low/ Shut down |
2. Yellow LED (GSM status indication)
| LED Status | Indication |
| Slow flashing, On 15s | GSM initialization |
| Quick flashing, On 0.1s,off 2s | GSM signal receive normal |
| Constantly on | GSM calls/GPRS start |
| Constantly off | No GSM signal received |
3. Blue LED (GPS status indication)
| LED Status | Indication |
| Flashing, On 0.1s, off 0.1s | GPS signal normal |
| Constantly on | GPS signal searching |
| Constantly off | GPS shut down |
Applications :
4S shop , car company , truck company , motorcycle company , GPS producer , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , car repair shop,taxi company .
Gurantee:
1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
- CA-V2F Device
- Power cable With fuse
- Manual
2. Optional accessories
1. Relay DC 12V
2. Li-Battery(Built-in)
