Large Battery Magnetic GPS Tracker With IP65 Water Resistance FB500/JT701
Asset/container/machine tracking
Vehicle rental / fleet management
Car insurance business
Motorcycle/scooter tracking
Manage personnel safety
Features:
Wireless with Powerful & Strong magnet design
Support GPS/LBS/AGPS multi-tracking
IP65 water resistance
Anti-tamper trigger alarm
Rechargeable battery standby 60days,6000mah rechargeable battery can standby 60 days if every 1 hour track 1 time.

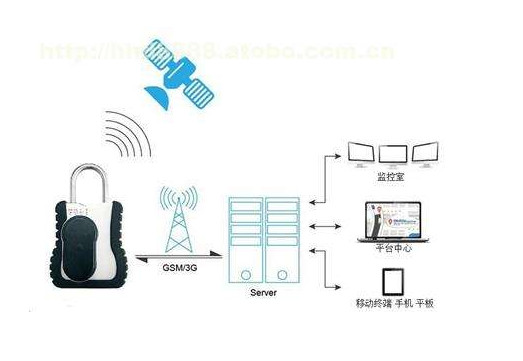

Tracking via Web/Android/IOS APP
Non- installation GPS with built-in GSM and GPS antenna.
Anti-tamper Alarm if remove GPS from Metal
Specification:
| Specification | Parameters |
| GSM band | 850/900/1800/1900Mhz |
| Dimension | 76.1*50*30.2mm |
| GSM chip | UBLOX-8020 |
| GPS accuracy | <=5m |
| Battery | Rechargeable 3.6V/6000mAh |
| Working Temp. | -20°C to +55°C |
Package Contents:
1 x device
1 x USB Cable
1 x color box
Applications:
- Vehicle leasing, fleet management and more
- Motorcycle, scooter, bike anti-theft
- Motorcycle, scooter, bike real-time tracking
- Manage personnel
Installation:
If the windscreen glued by metal thermal insulation layer or heating layer, it will reduce the GPS receive signal and lead to GPS work disorder.
Start to use:
1. Set IP Port and APN
Send SMS “adminip+password+space+IP Address+space+port number”
Eg, adminip123456 121.201.109.14 6969
2. Set APN
Send SMS “apn123456+space+local apn+space+apn name+space+apn password”
Eg, apn123456 tim.br tim tim
Below function is not necessary if user no need.
| Other Function | SMS Command | Command reply |
| The “+” in the command, please don’t type “+”, space means press the space keyboard on your cell phone,password 123456; All Alarms only will be sent to Central Number. |
| Initialization | begin123456 | Initialize factory setting |
| Set upload time interval | ITV+password+space+ time interval | If set 60s ,
send SMS: ITV123456 60 |
| Value range: 10s to 180s |
| Deeply sleep mode | HOUR+password+space+ time interval | If set 1 hour
send SMS: HOUR123456 1 |
| Set low battery alarm | lowbat + password+space+1 | lowbat123456 1 |
| Cancel low battery | lowbat + password+space+0 | lowbat123456 0 |
| Set time zone | timezone+password+space+(timezone*60) | If set GMT+5.5 |
| send SMS : timezone123456 330 |
| Set remove alarm | Remove+password+space+1 | Remove123456 1 |
| Cancel remove alarm | Remove+password+space+0 | Remove123456 0 |
Specification:
Size: 109mm*78mm*26mm
Weight: 280g
Position Sensitivity: -163db
Work Voltage: 3.7V
Capacitory: 15000mAh
Position: GPS And LBS

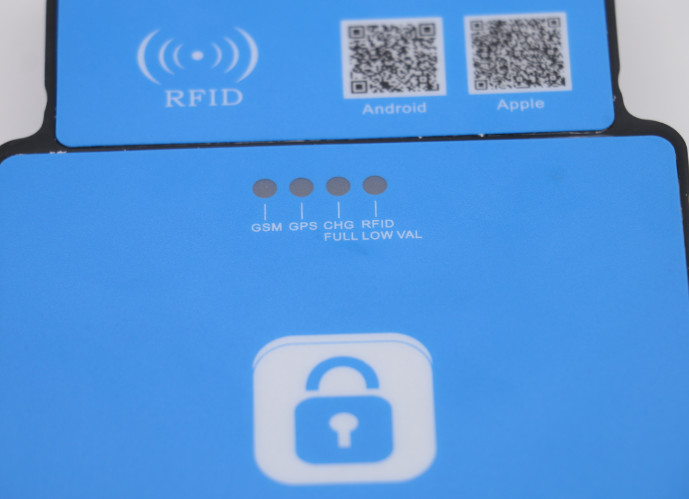

LED Indication:
Blue LED: GPS indicator, flash stands for GPS Signal is normal, or no GPS Signal.
Green LED: GSM Signal indicator, flash stands for connects to server. or no sim card or searching network.
Red LED: charging indicator, light stands for charging, or it is full.
Device Display:
FAQ:
1. How long it works?
Answer: 60days. according to different work mode.
2. How about the battery?
Answer: 15000mAh battery.
3. Dose it contain magnetic?
Answer: Yes
4. What kinds of vehicle we can use it?
Answer: any kinds for vehicles.
