Large Battery And Magnetic GPS Tracker For Long Standby Time With 10000mAh
Performance Parameters:
| Content | Specs. |
| Product Name | Long Battery Life GPS Tracker |
| Functions1 | Mobile Phone App |
| Functions2 | History Track |
| Weight | 0.357kg |
| Size | 13*7*2cm |
| Li-ion Battery | 10000mAh Rechargeable 3.7V |
| GSM Chip | MTK |
| GPS sensitivity | -159dBm |
| GPS accuracy | <30m |
| Time To First Fix | Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
| Work Voltage | 3.7VDC－4.5VDC |
| Application | Taxi |
| Standby work current | < 3mA |
| Storage Temp. | -39°C to +70°C |
| Operation Temp. | -20°C to +55°C |
| Humidity | 5%--95.5% non-condensing |
Installation:
1. Insert the SIM Card then the unit starts to work.
2. When this unit receives GPS signals normally, you can use it and do any setting as the instructions
of this manual.
LED Indicator:
1. Blue LED for GPS working status
| Status of indicator | Meaning |
| Slow flash (flash 1s after every 2s) | Searching GPS Signal |
| Continuously in bright status | GPS Location successful |
| Blue LED Off | Sleep mode or Device off |
2. Red LED for power charging status
| Status of indicator | Meaning |
| Red LED on all the time | Charging |
| Red LED off | Full battery or Device off |
3. Yellow LED for GPRS working status
| Status of indicator | Meaning |
| Slow flash (flash 1s after every 2s) | GSM/GPRS signal Searching |
| Continuously in bright status | GSM/GPRS Successful |
| Yellow LED off | Device sleep or Device off |
Applications:
1. Vehicle Rental / Fleet management etc
2. Container/cargo/asset tracking
Feature:
1. Real Time Tracking
2. History Track
3. Long Standby time for 10days.
4. Without Power Cable
5. Rechargeable Battery
6. Super Magnet
Battery and Charger:
Do charge the battery to capacity in 8 -12 hours for first time. Please use the battery and charger provided by the manufacturer. This unit adopts built-in Li-ion battery, and full battery can standby 100days. After first use, the battery usually should be charged fully in 4--6 hours.
SMS Commands:

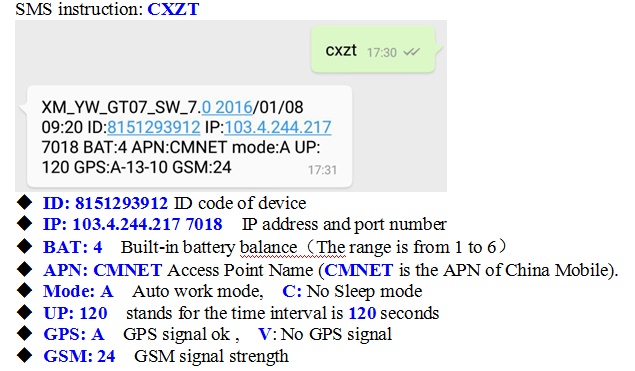

1. Check Device Information

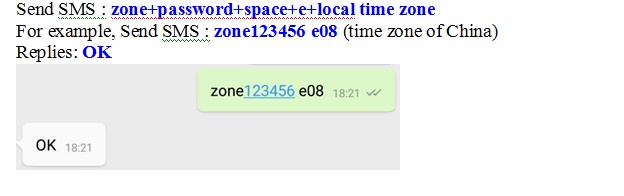

2. Time Zone Setting
3. Single track
